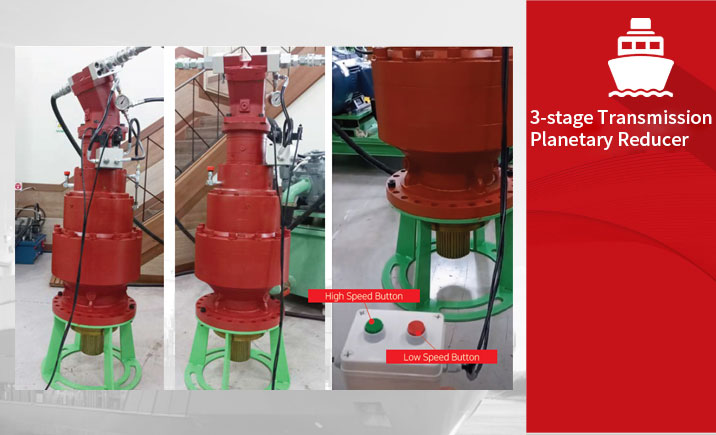

Automatic Transmission Planetary Reducer

HOME > Business > Automatic Transmission Planetary Reducer

Application
• Reducer for Auger Excavator.
• Marine ship-building and off-shore equipments
• Construction equipments
• Industrial equipments
• Conveyance(lifting, hoist) equipments
• Make to order according to customer’s requirements
Specification
Specification
Model 2AT-3S110 2AT-3S090 2AT-3S075
Ratio 1/110 1/90 1/75
Hyd' motor 107cc 130cc 160cc
Pressure 350 bar
Flow 300 l/min
Speed change hyd' pressure 14 bar
Total reducer ratio 1/24.9 1/112.2 1/24.9 1/88.4 1/24.9 1/74.7
Output speed 112 rpm 25 rpm 90 rpm 25 rpm 76 rpm 25 rpm
Output torque 15,000 N.m 66,000 N.m 18,000 N.m 64,000 N.m 22,000 N.m 66,000 N.m
Weight 570kg
