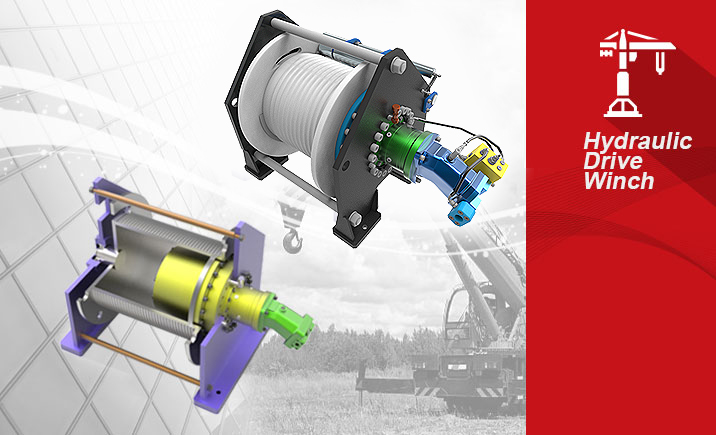

Winch equipment

HOME > Business > Winch equipment

Application
Mooring arrangement for ship, Load/unload equipment
Construction equipment & logistics industry
Features
2ton ~ 20ton
Equipped hydraulic brake with anti-backlash
Applied the secondary reducer system
Free fall capability, winch is an emergency safety device
Specifications
Ratio 1/20 ~ 1/140
Capacity[ton] 2~20 (4,409~44,092 lb)
Working pressure [bar] 200 ~ 250
Output speed [rpm] 20 ~ 40
Hydraulic Braking torque [N.m] 350 ~ 900
Hydraulic Brake releasing pressure [bar] 15 ~ 35
Hydraulic Brake max pressure [bar] 315
Reverse rotation prevention with oneway bearing (option) T=1,050 [N.m]
