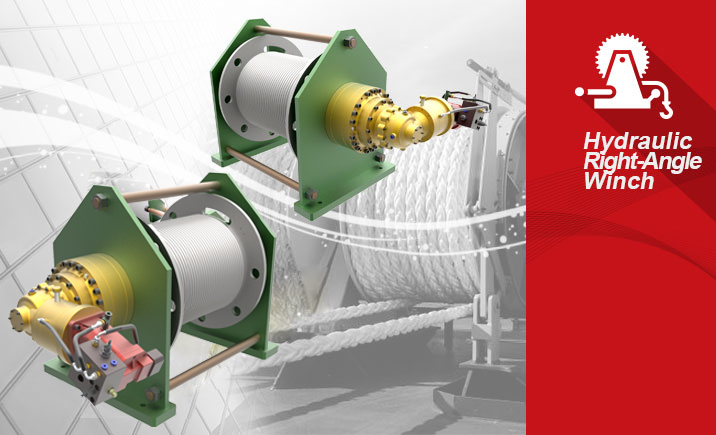

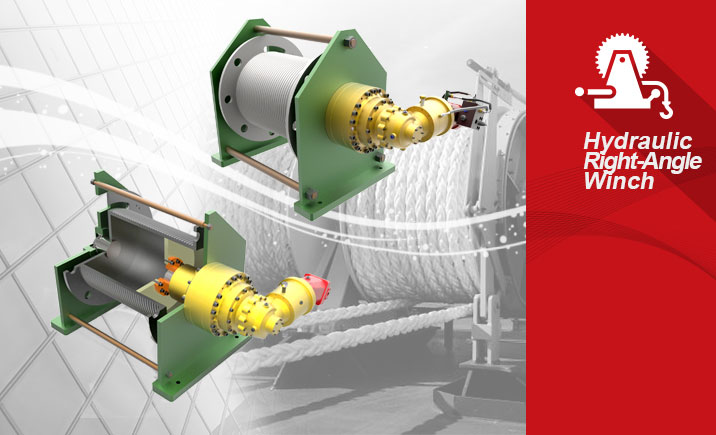

Winch equipment
- Application
- Mooring arrangement for ship, Load/unload equipment
- Construction equipment & logistics industry
- Features
- 2ton ~ 20ton
- Equipped hydraulic brake with anti-backlash
- Applied the secondary reducer system
- Free fall capability, winch is an emergency safety device
- Specifications
-
| Ratio |
1/20 ~ 1/140 |
| Capacity[ton] |
2~20 (4,409~44,092 lb) |
| Working pressure [bar] |
200 ~ 250 |
| Output speed [rpm] |
20 ~ 40 |
| Hydraulic Braking torque [N.m] |
350 ~ 900 |
| Hydraulic Brake releasing pressure [bar] |
15 ~ 35 |
| Hydraulic Brake max pressure [bar] |
315 |
| Reverse rotation prevention with oneway bearing (option) |
T=1,050 [N.m] |
