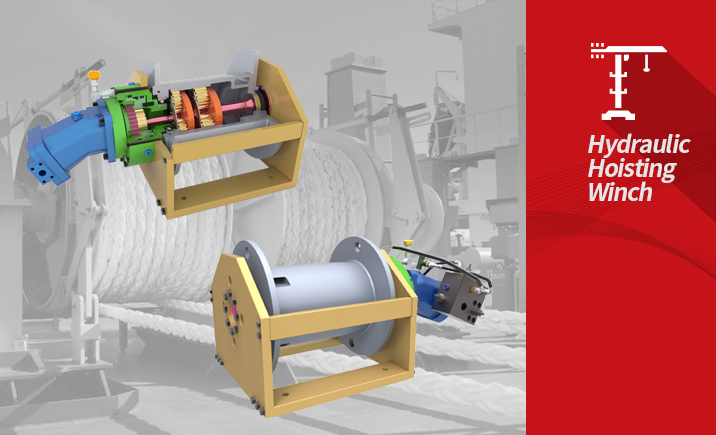

Winch equipment

HOME > Business > Winch equipment

Application
Mooring arrangement for ship, Load/unload equipment
Construction equipment & logistics industry
Features
Higher durability with piston type of motor
Anti-backlashing
Anti-slip
Easy maintenance
Specifications
Ratio 1/20 ~ 1/140
Capacity[ton] 2~10 (4,409~22,046 lb)
Working pressure [bar] 200 ~ 250
Output speed [rpm] 20 ~ 40
Hydraulic Braking torque [N.m] 200 ~ 500
Hydraulic Brake releasing pressure [bar] 15 ~ 35
Hydraulic Brake max pressure [bar] 315
Reverse rotation prevention with oneway bearing (option) T=570 [N.m]
