Reducer for shipbuilding

Test result
  • Test method : Done each test like below pictures.

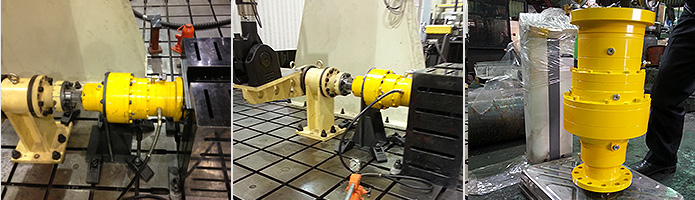

[그림1. 조선선박용 감속기 성능시험 장면]

[Picture1 : Performance test of reducer for shipbuilding]

Test condition
SPL No Test Name Test Velocity Test Results Remark
SPL#1 Slip strength test 1mm/sec 2,048kgf.m Horizontal length of jig to work on rotary system: 0.5m
Brake strength test 3,368kgf.m
SPL#2 Slip strength test 2,141kgf.m
Brake strength test 3,486kgf.m

* Done test with full stroke in actuator.

. Ref. : Test result graph
Test Equipment Specification.
1. 244.31 Actuator(MTS)
- Max static stroke : ±125mm
- Max Dynamic stroke : ±100mm
- Total force : 25ton
- Hydraulic Power Supply : 380 LPM, 3000psi		 2. GT Controller
- Customized tests
- Automated test
- Data acquisition
- Multi-station tests

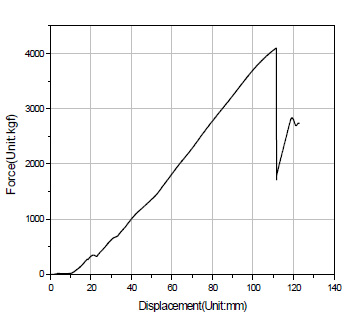

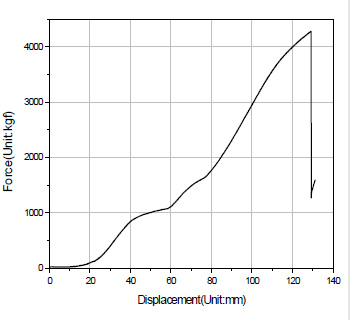

Slip strength test

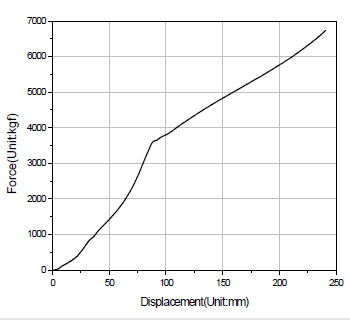

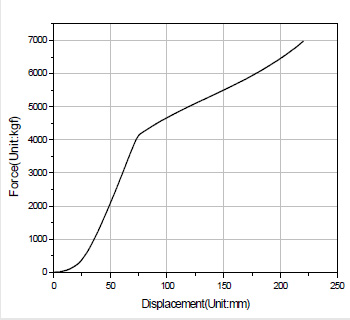

Brake strength test
