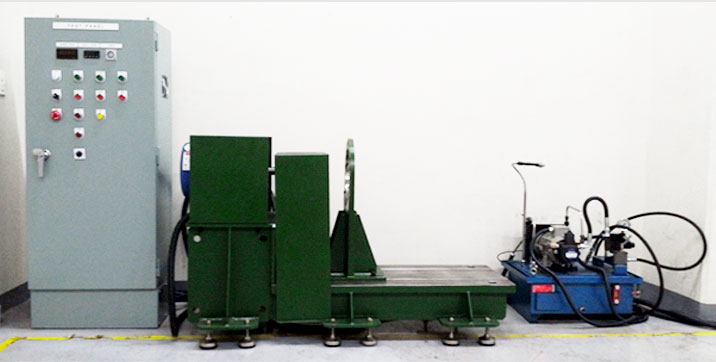

Model Name Reducer Operation Test Equipment
Description Reducer operation test using electrical motor
Specification
  • - Test Bed
    1. 1) Bed length : 1500x670x850(H)
    2. 2) Electrical Motor : 7.5kw, 4P
  • - Power Pack
    1. 1) Unit Capacity : 40L
    2. 2) Working Pressure : 40~50bar
    3. 3) Single Solenoid type
  • - Control electrical motor RPM
Measurement Reduction gear ratio, RPM, Hydraulic Brake releasing pressure and Outflow
Test Winch Drive Reducer & Slewing Reducer
