Development status
Reducing system module
Test result
- Test method : Done each test like below pictures.

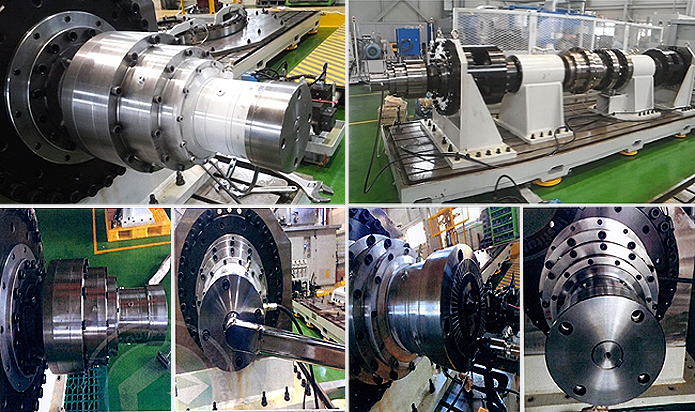

![[그림1. 조선선박용 감속기 성능시험 장면]](../images/sub03/result_pic4_1.jpg)
[Performance test of reducing system module]
Test condition
| Product | Item | Target | Notes |
|---|---|---|---|
| Reducing module | Max. Torque | 37,000 N.m | |
| Brake relief pressue | (3±0.5)Mpa | ||
| Reduce ratio | 1/(242±0.5) | ||
| Max. brake pressure | 30Mpa | ||
| Brake torque | 550N.m |

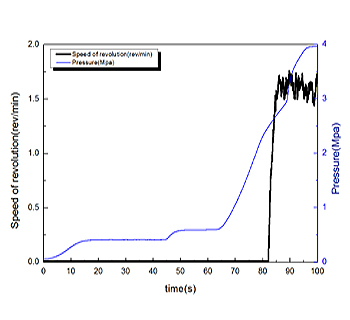

Brake relief pressure test

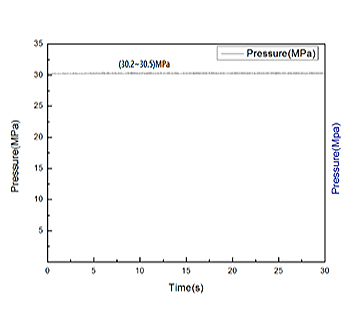

Brake leakage test

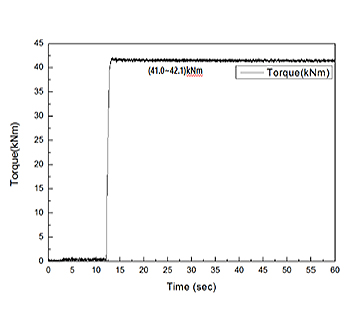

Max. torque test

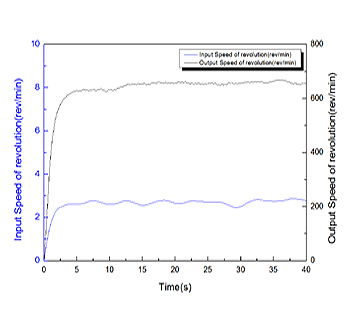

Reduce ratio test
