Reducer for shipbuilding
Test result
- Test method : Done each test like below pictures.
![[그림1. 조선선박용 감속기 성능시험 장면]](../images/sub03/result_pic2.jpg)

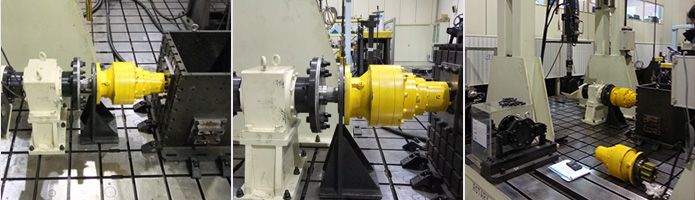

[Picture 1. Performance test of reducer for shipbuilding]
![[그림1. 조선선박용 감속기 성능시험 장면]](../images/sub03/result_pic4.jpg)

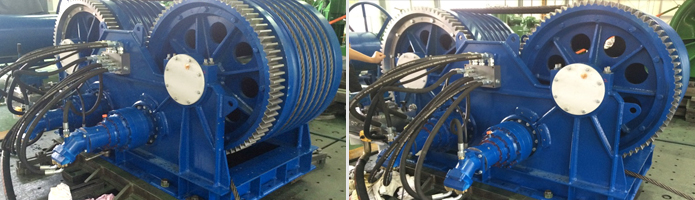

[Picture 2. Field endurance test]
Test condition
| Test Name | SPL No. | Test Velocity | Test Results | Remark |
|---|---|---|---|---|
| Brake strength test | SPL#1 | 1mm/sec | 31,735N·m | Vertical length of jig to work on rotary system : 0.4m |
| SPL#2 | 31,932N·m |
※ Done test with full stroke in actuator.
Test result
| Test Equipment Specification. | |
|---|---|
| 1. 244.31 Actuator(MTS) - Max static stroke : ±125mm - Max Dynamic stroke : ±100mm - Total force : 25ton - Hydraulic Power Supply : 380 LPM, 3000psi |
2. GT Controller - Customized tests - Automated test - Data acquisition - Multi-station tests |

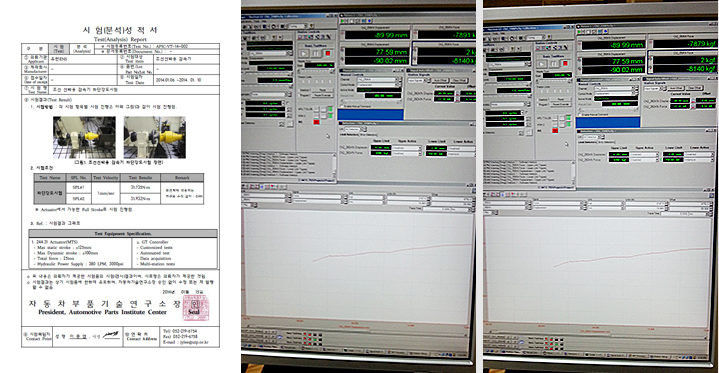

Test(analysis) report
