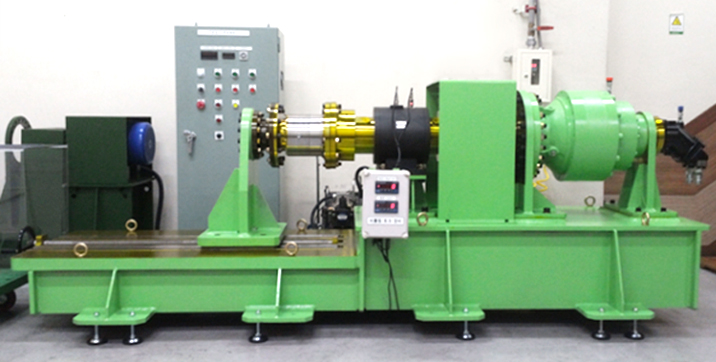

Model Name Torsion Torque Test Equipment
Description Shaft torsion torque test
Specification
  • 1) Max. Torque : 42,000N.m
  • 2) Hydraulic Motor : 80cc
  • 3) Planetary Reducer : 1/112.2
  • - Torque Sensor
    1. 1) Capacity : 4,000kgf-m
    2. 2) Possible for sensing RPM
  • - Control pressure by manual control valve
Measurement Torsion Torque, RPM
Test Hydraulic Brake Torque, Torsion Torque
