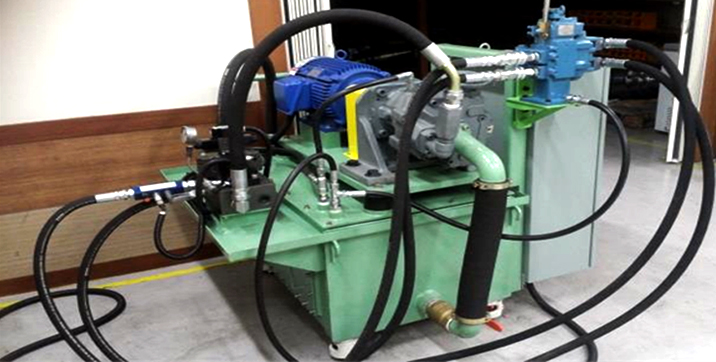

Model Name 300L Power Pack
Description Hydraulic motor & Planetary gear reducer operation test
Specification
  • 1) Size : 1410x1010x1410(H)
  • 2) UNIT Capacity : 300L
  • 3) Control flow, pressure and motor rpm
    1. - Max. Working Pressure : 300bar
    2. - Max. Flow : 200L
    3. - Max. Motor RPM : 2,500rpm
  • 4) Double Solenoid control type
  • 5) Possible for controling pump’s flow
Measurement Flow, Pressure, RPM
Test Hydraulic Motor, Planetary Gear Reducer
