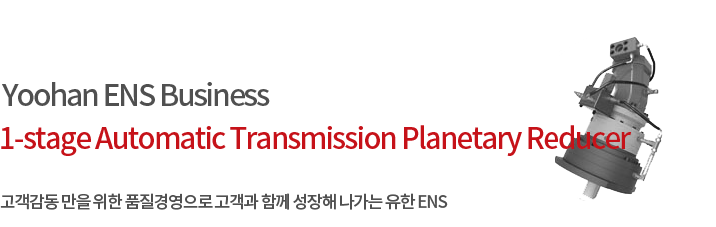

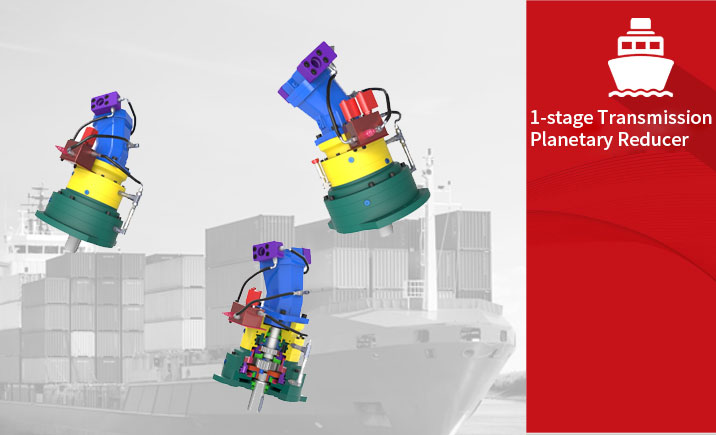

자동변속감속기

HOME > Business > 자동변속감속기

스펙
Model 2AT-80 2AT-107 2AT-160
Hyd’ motor 80cc 107cc 160cc
Max. Pressure 350 bar 350 bar 350 bar
Max. Flow 240 ℓ 260 ℓ 320 ℓ
Speed Change Pressure 13 bar 15 bar 13 bar
Ratio 1/3 1/1 1/3 1/1 1/3 1/1
Max. Output Speed 1,000 rpm 3,000 rpm 830 rpm 2,500 rpm 660 rpm 2,000 rpm
Max.Output Torque 1,335 N.m 445 N.m 1,770 N.m 590 N.m 2,670 N.m 890 N.m
Weight 165 kg 195 kg 260 kg
