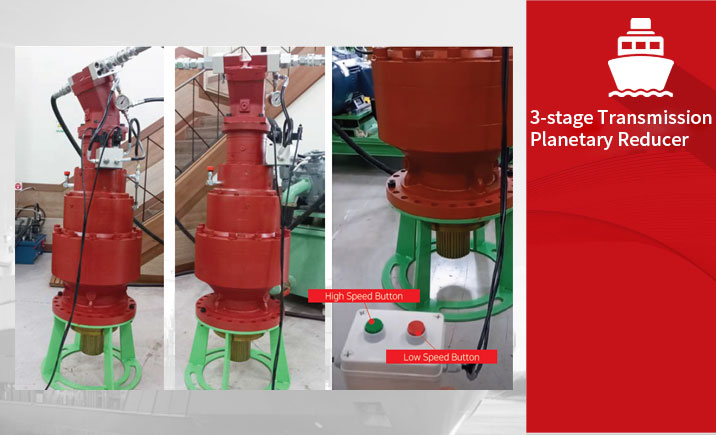

자동변속감속기
- 적용
- • Reducer for Auger Excavator.
- • Marine ship-building and off-shore equipments
- • Construction equipments
- • Industrial equipments
- • Conveyance(lifting, hoist) equipments
- • Make to order according to customer’s requirements
- 스펙
-
| Specification |
| Model |
2AT-3S110 |
2AT-3S090 |
2AT-3S075 |
| Ratio |
1/110 |
1/90 |
1/75 |
| Hyd' motor |
107cc |
130cc |
160cc |
| Pressure |
350 bar |
| Flow |
300 l/min |
| Speed change hyd' pressure |
14 bar |
| Total reducer ratio |
1/24.9 |
1/112.2 |
1/24.9 |
1/88.4 |
1/24.9 |
1/74.7 |
| Output speed |
112 rpm |
25 rpm |
90 rpm |
25 rpm |
76 rpm |
25 rpm |
| Output torque |
15,000 N.m |
66,000 N.m |
18,000 N.m |
64,000 N.m |
22,000 N.m |
66,000 N.m |
| Weight |
570kg |
